NOMAD
The Nomad is a custom made wheelchair, fully adapted to the needs and convenience of each individual user. Thanks to the fully adaptive design of the Nomad we are able to create a different wheelchair for every one of our customers.

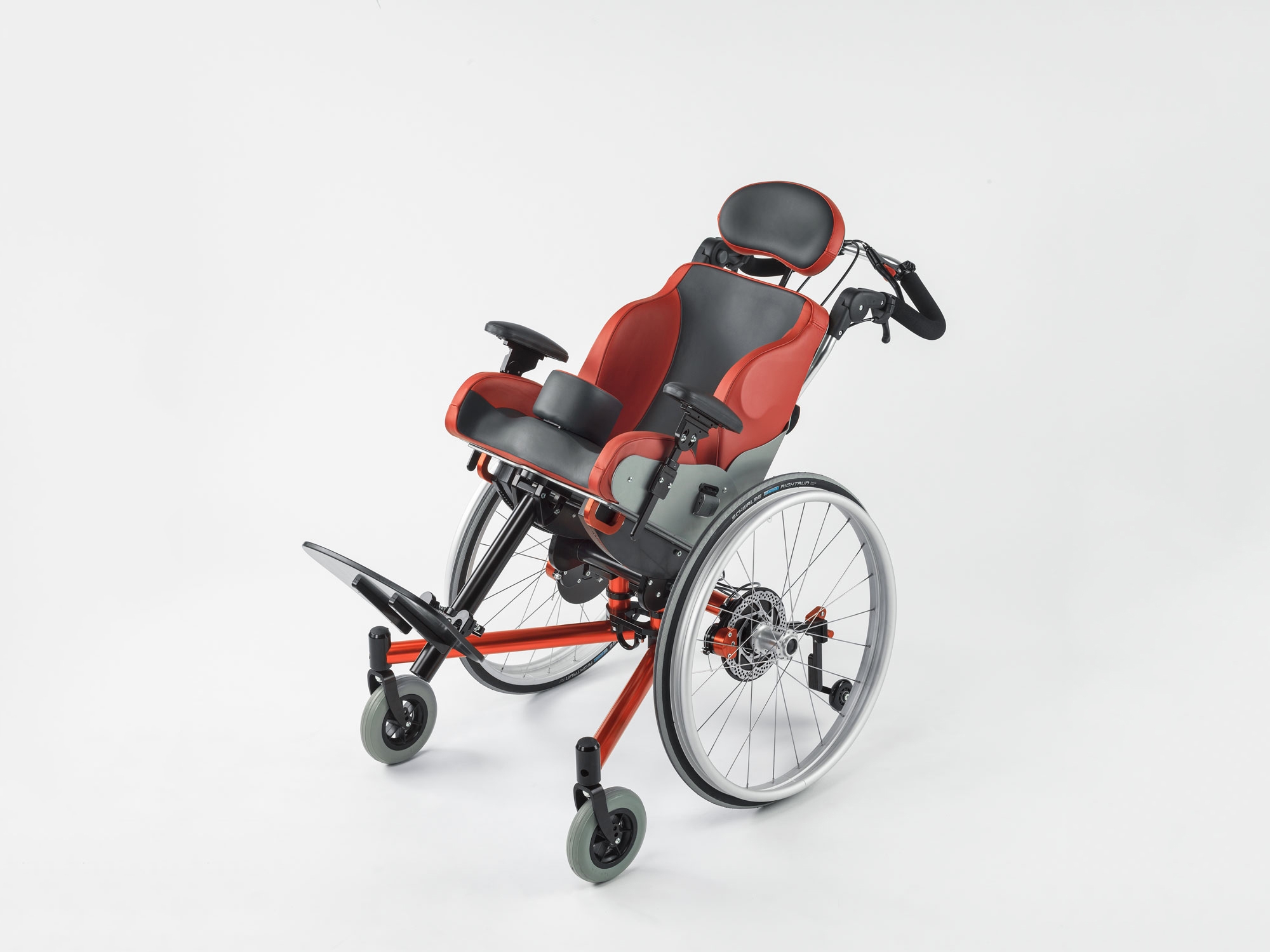

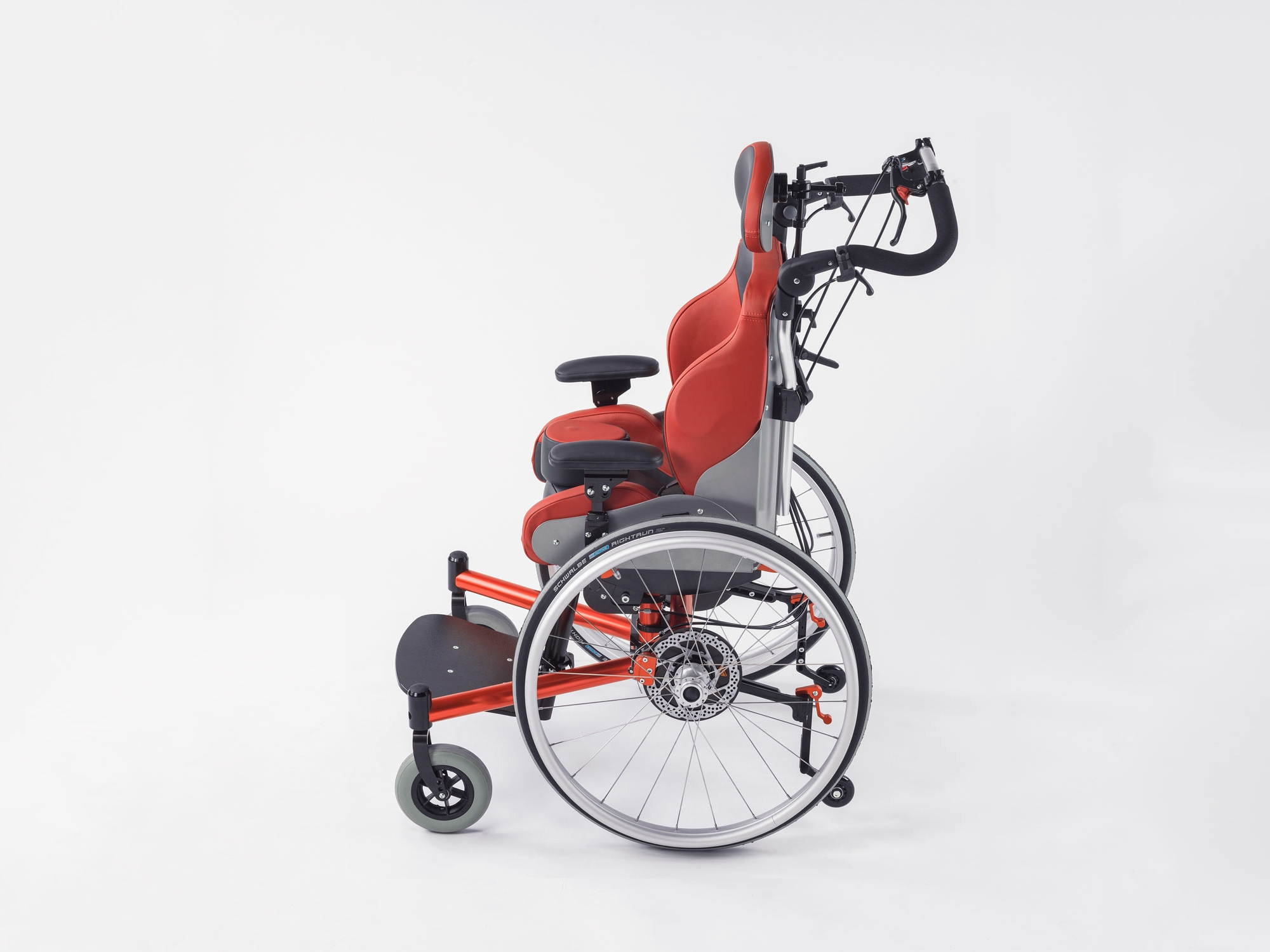

Nomad
The Orthos seating system
With the integration of a seating that relies on the latest digital 3D scanning techniques we have defined a new standard in wheelchairs. The custom made foam seatings guarantee a 100 % fit. Combined with a finishing of highquality leather and an extremely rigid housing we provide optimum comfort and durability all-in-one. The Nomad is designed as a chassis for the Orthos Seating System. However it is also possible to easily fit any other orthosis into the aluminium seating shell.
One design. Endless possibilities.
Product video
People change. The Nomad adapts.
As we progress in life our needs might change. The Nomad is build to change with you. Even after years of use. Every part of the Nomad is replaceable and customisable: from frame to wheels to seating. This makes the Nomad a very flexible and sustainable wheelchair, an economic- and environmental choice.

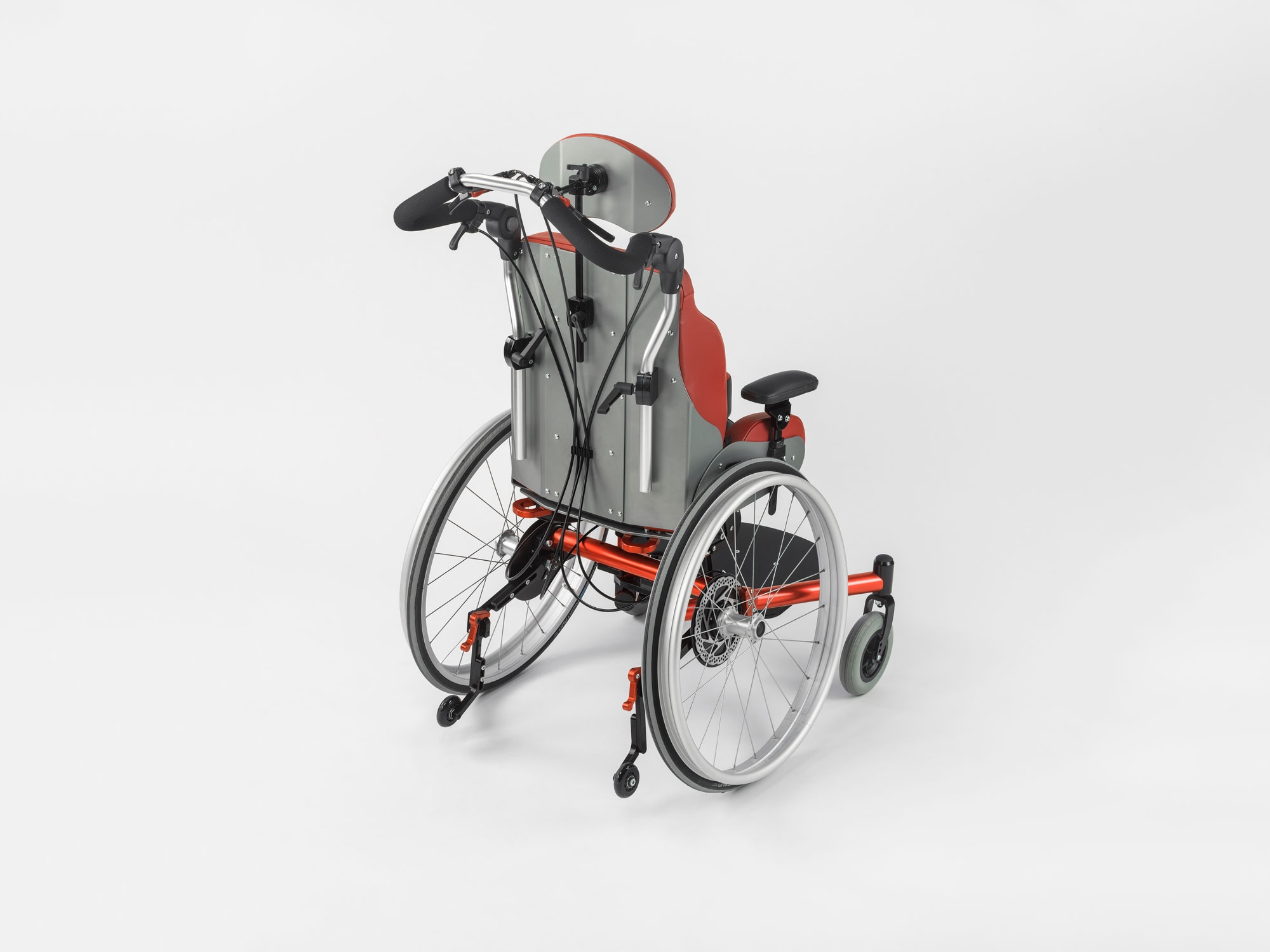

Nomad back
Accessories and extras
The Nomad comes with many customisable extras and accessories to choose from. 18" to 28" anodised aluminium driver wheels with integrated driver rings. High quality Orthos disc breaks. An optional single-hand stop-lock system. Fully adjustable head-, arm- and leg support. A 4-point grip-system for car- and taxi transportation. Pushing handels in different shapes and sizes. An anti-tipping system. Multiple frame colours to choose from. And the list goes on. For a full overview of all the extras and accessories of the Nomad please have a look at the list of technical specifications.

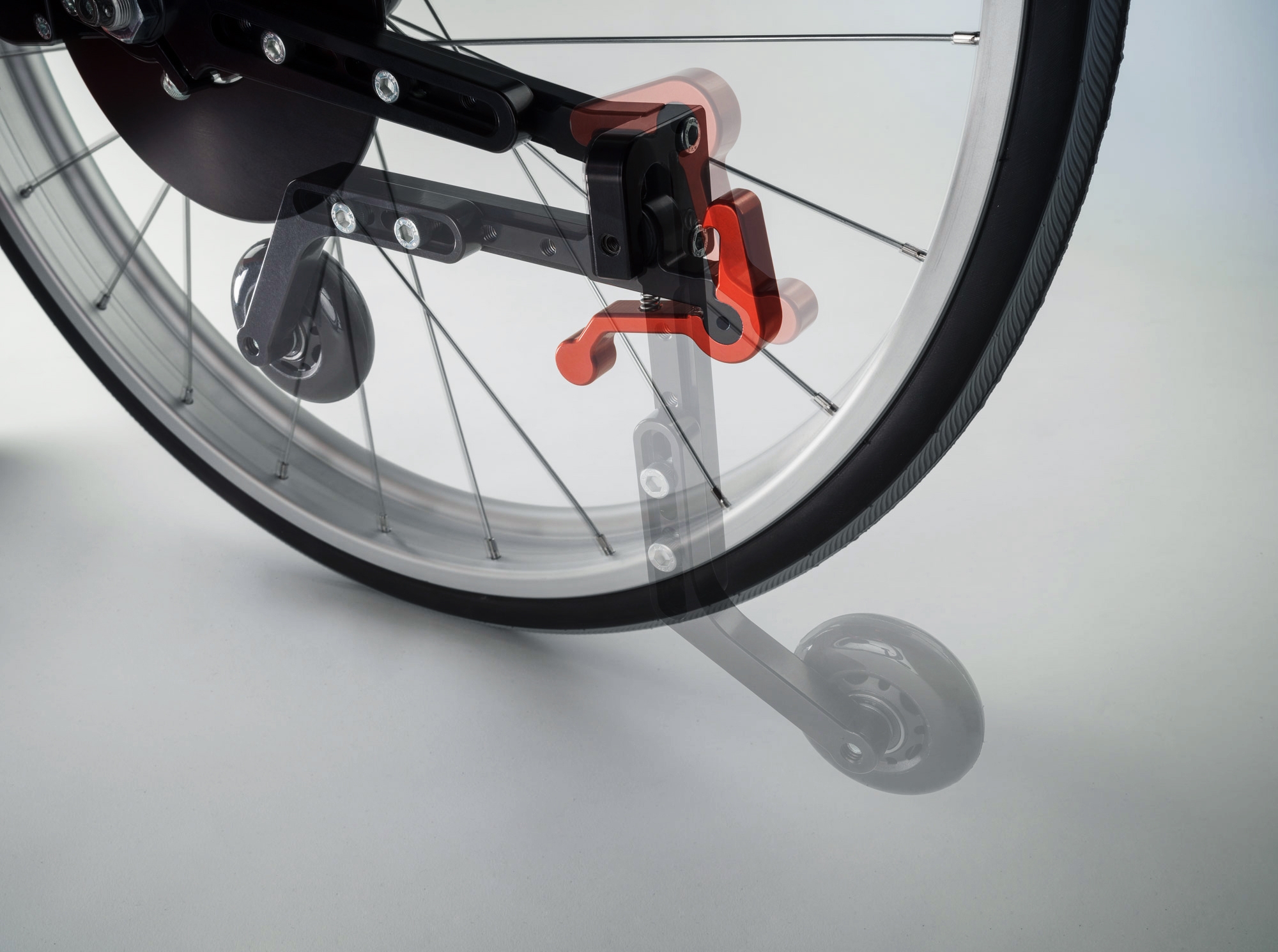

Nomad Anti-tipping device
Technical specifications
| > Size |
Available in different sizes depending on configuration. - See also dimensions table. | > Material |
High quality anodised Orthos aluminium. |
| > Wheelbase |
Available in different sizes depending on configuration - See also dimensions table. | > Seating |
Available in different sizes depending on configuration - See also dimensions table. |
| > Tilt | The tilt has a fixed setting from 0 to 20 degrees. With the mechanical tilt it is possible to tilt the seat backwards to 38º while maintaining balance. | > Driver Wheels |
Two aluminium driver wheels with integrated driver rings. Both driver wheels are equipped with quick release axes that allow for easy storage and transportation. The mounting angles of back wheels available in either 0, 3 or 6 degrees. Rim sizes available from 18x1” to 28x1”. |
| > Castor Wheels |
There are either one or two castor wheels located at the front of the wheelchair depending on configuration. The castors come with solid tires, using aluminum or plastic rims. The position of the castor wheels is fully adjustable. - See also dimensions table. | > Braking System |
By default the wheelchair is provided with an integrated high quality Orthos disc break. Breaks can be used to slow down the wheelchair or be set as parking brakes. Additionally a single-hand stop-lock system mounted anywhere on the wheelchair can be provided. |
| > Anti-Tipping System | Adjustable anti-tipping system to prevent the wheelchair from tipping backwards. The system comes with simple lock-unlock functionality. Depending on the configuration users can choose between either a single or double anti-tipping mechanism. | > Transportion Grips | Available with four red coloured transportation grips for safe taxi- and car transportation. |
| > Headrest |
Fully adjustable headrest. | > Footrest |
Fully adjustable footrest. |
| > Arm Rests |
Fully adjustable arm rests. | > Pushing Handles |
Available with either a single ergonomic pushing handle or two separate handlebars. |
| > Colours |
The frame is available in four colours: cherry red, deep blue, titan silver and black. | > Operating temperature |
Any comfortable operating temperature. |
| > Weight |
10 kg. to 30 kg. max. (22 lbs. to 66 lbs.) - Depending on configuration. | > Maximum load | 120 kg. / 265 lbs. |
Dimensions
| > Seat width |
28 cm. to 64 cm. Width of foam seating not included | > Seat depth |
22 cm. to 54 cm. Depth of foam seating not included. |
| > Backrest width |
28 cm. to 64 cm. Width of foam seating not included. | > Backrest height |
32 cm. to 68 cm. Height of foam seating not included. |
| > Driver wheels |
18x1” to 28x1” with massive- or air tires. | > Castor wheels |
10 cm. to 18 cm. only available with massive tires. |
| > Total width |
Total width depending on configuration wheelchair. | > Total height |
Total height depends on configuration wheelchair. |
| > Total length | Total length Total length depends on configuration wheelchair. |

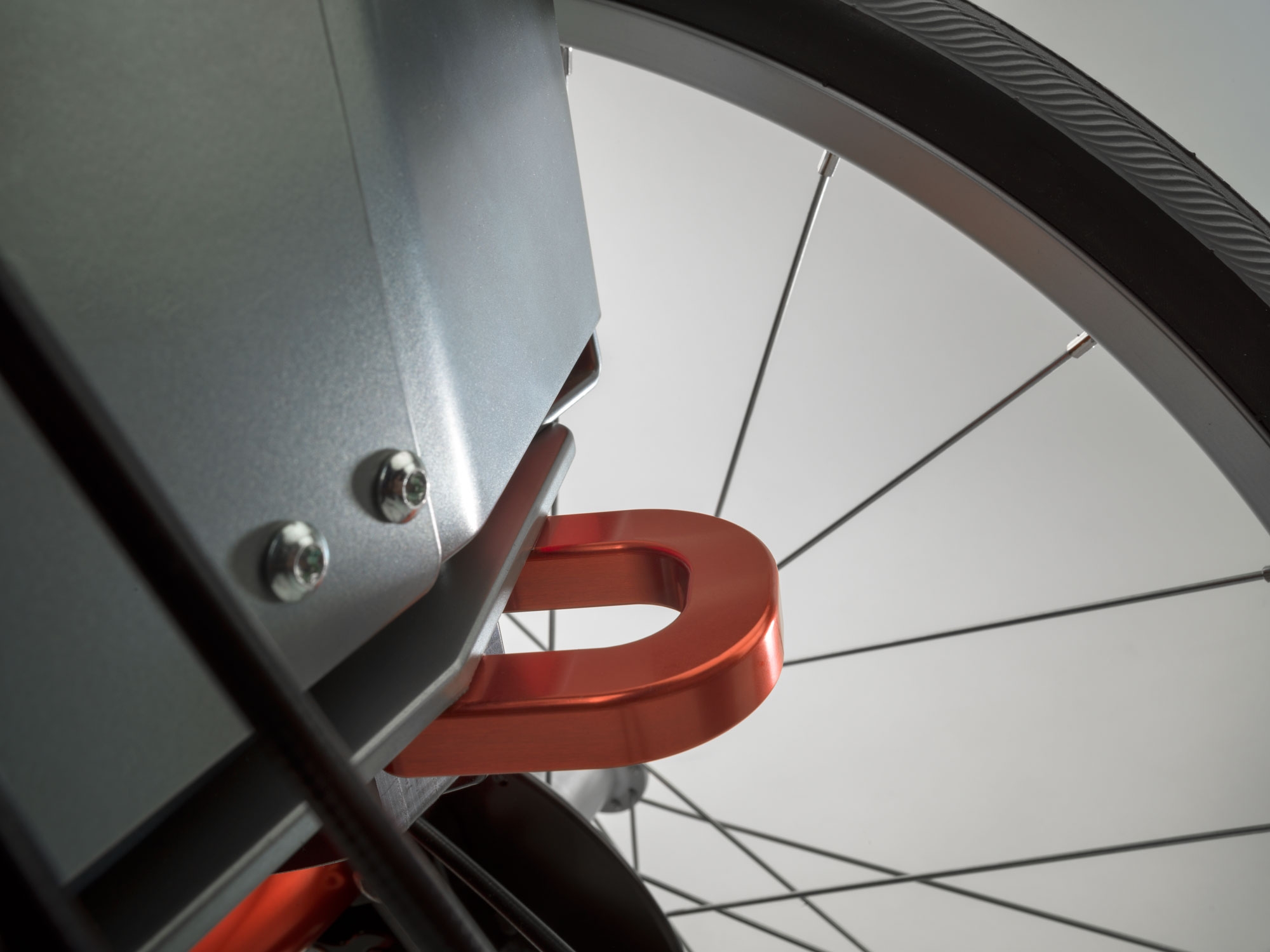

Car grip
The Nomad is tested according to the EG direction medical supports 93/42/ EEG and the norm EN12183:1999 and are chrashtested in conformity with ISO 7176-19:2008 as dictated in the applicable norm EN 12183:2009
NOMAD
The Nomad is a custom made wheelchair, fully adapted to the needs and convenience of each individual user. Thanks to the fully adaptive design of the Nomad we are able to create a different wheelchair for every one of our customers.
Nomad
The Orthos seating system
With the integration of a seating that relies on the latest digital 3D scanning techniques we have defined a new standard in wheelchairs. The custom made foam seatings guarantee a 100 % fit. Combined with a finishing of highquality leather and an extremely rigid housing we provide optimum comfort and durability all-in-one. The Nomad is designed as a chassis for the Orthos Seating System. However it is also possible to easily fit any other orthosis into the aluminium seating shell.
One design. Endless possibilities.
Product video
People change.
The Nomad adapts.
As we progress in life our needs might change. The Nomad is build to change with you. Even after years of use. Every part of the Nomad is replaceable and customisable: from frame to wheels to seating. This makes the Nomad a very flexible and sustainable wheelchair, an economic- and environmental choice.
Nomad back
Accessories and extras
The Nomad comes with many customisable extras and accessories to choose from. 18" to 28" anodised aluminium driver wheels with integrated driver rings. High quality Orthos disc breaks. An optional single-hand stop-lock system. Fully adjustable head-, arm- and leg support. A 4-point grip-system for car- and taxi transportation. Pushing handels in different shapes and sizes. An anti-tipping system. Multiple frame colours to choose from. And the list goes on. For a full overview of all the extras and accessories of the Nomad please have a look at the list of technical specifications.
Nomad Anti-tipping device
Technical specifications
> Size
Available in different sizes depending on configuration. - See also dimensions table. > Material High quality anodised Orthos aluminium.
> Wheelbase
Available in different sizes depending on configuration - See also dimensions table. > Seating Available in different sizes depending on configuration - See also dimensions table.
> Tilt
The tilt has a fixed setting from 0 to 20 degrees. With the mechanical tilt it is possible to tilt the seat backwards to 38º while maintaining balance. > Driver Wheels Two aluminium driver wheels with integrated driver rings. Both driver wheels are equipped with quick release axes that allow for easy storage and transportation. The mounting angles of back wheels available in either 0, 3 or 6 degrees. Rim sizes available from 18x1” to 28x1”.
> Castor Wheels
There are either one or two castor wheels located at the front of the wheelchair depending on configuration. The castors come with solid tires, using aluminum or plastic rims. The position of the castor wheels is fully adjustable. - See also dimensions table.
> Braking System
By default the wheelchair is provided with an integrated high quality Orthos disc break. Breaks can be used to slow down the wheelchair or be set as parking brakes. Additionally a single-hand stop-lock system mounted anywhere on the wheelchair can be provided.
> Anti-Tipping
System Adjustable anti-tipping system to prevent the wheelchair from tipping backwards. The system comes with simple lock-unlock functionality. Depending on the configuration users can choose between either a single or double anti-tipping mechanism.
> Transportion
Grips Available with four red coloured transportation grips for safe taxi- and car transportation.
> Headrest
Fully adjustable headrest.
> Footrest
Fully adjustable footrest.
> Arm Rests
Fully adjustable arm rests.
> Pushing Handles
Available with either a single ergonomic pushing handle or two separate handlebars.
> Colours
The frame is available in four colours: cherry red, deep blue, titan silver and black.
> Operating temperature
Any comfortable operating temperature.
> Weight
10 kg. to 30 kg. max. (22 lbs. to 66 lbs.) - Depending on configuration.
> Maximum load
120 kg. / 265 lbs.
Dimensions
> Seat width
28 cm. to 64 cm. Width of foam seating not included
> Seat depth
22 cm. to 54 cm. Depth of foam seating not included.
> Backrest width
28 cm. to 64 cm. Width of foam seating not included.
> Backrest height
32 cm. to 68 cm. Height of foam seating not included.
> Driver wheels
18x1” to 28x1” with massive- or air tires.
> Castor wheels
10 cm. to 18 cm. only available with massive tires.
> Total width
Total width depending on configuration wheelchair.
> Total height
Total height depends on configuration wheelchair.
> Total length
Total length Total length depends on configuration wheelchair.
Car grip
The NOMAD is tested according to the EG direction medical supports 93/42/ EEG and the norm EN12183:1999 and are chrashtested in conformity with ISO 7176-19:2008 as dictated in the applicable norm EN 12183:2009
