Stand & Roll
STAND & ROLL

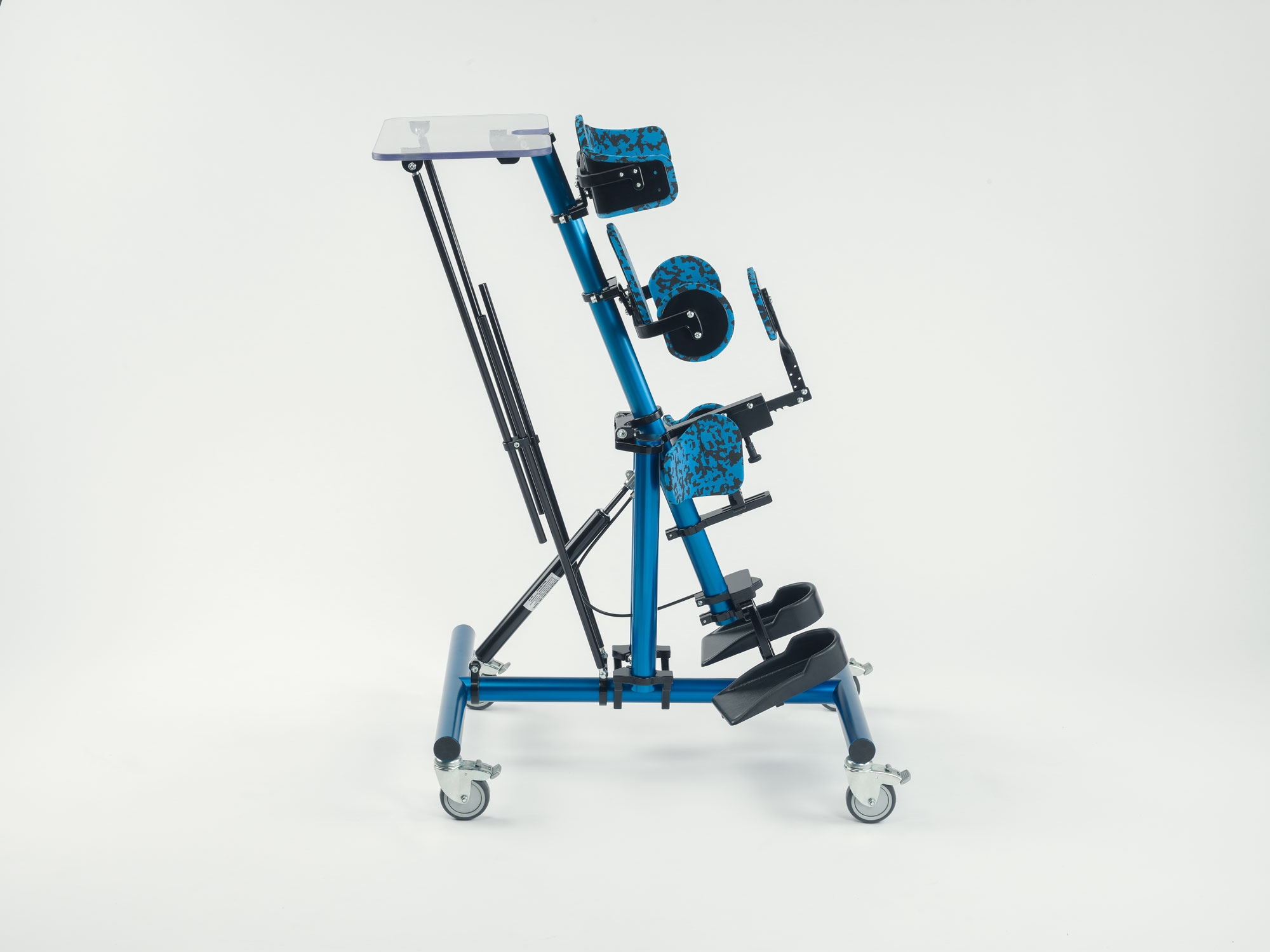

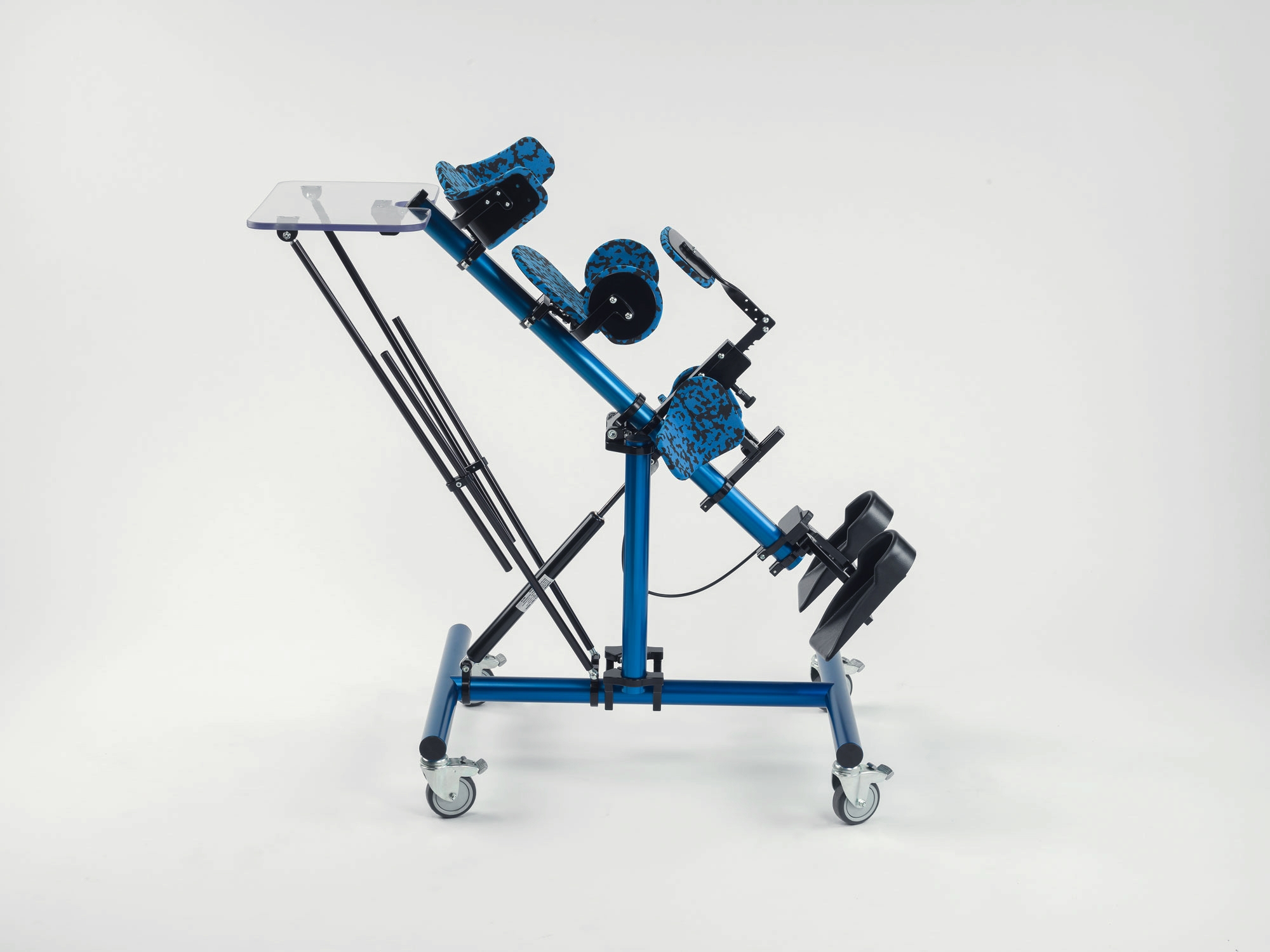

The Stand & Roll is a standing aid that moves easily in and around the house. Standing is a great alternative to sitting and as a standing orhtosis the Stand & Roll functions as an excellent supplement to your regular wheelchair.
Stand & Roll
The design
The Stand & Roll is designed with four braked castors is designed without large 'driver wheels': this means Stand & Roll users will be reliant on external guidance when moving around. Just like the Nomad and Stand & Roll this device adapts and ‘grows’ with its user. The tubular frame and adjustable components enable our specialists to modify your Runner at any time and help them to combine and interchange parts from different Orthos products.
Runner vs. Stand & Roll
Just like the Stand & Roll the Runner is also a standing orthosis. Both orthoses show many similarities but differ in use: With its two comfortable driver wheels the runner lets its user have full control over all movements. The Stand & Roll on the other hand is designed with four braked castors: the users of this model will be reliant on external guidance when moving around.
Left: Runner. Right: Stand & Roll.
Move and improve.
Standing up straight appropriately contributes to the correct development of the human body. The Orthos Runner and Stand & Roll therefore provide a great alternatives to regular wheelchairs. Standing improves blood circulation; it gives the human skeleton a more even bone loading and therefore stimulates growth; standing supports better organ functioning; it counteracts bed sores. In addition, standing provides an upright view of the world helping users to interact more naturally with their surroundings.
Single-hand stop-lock system
The Orthos standing system
[1/2]
For both the Runner and Stand & Roll there are two different standing systems to choose from:
1. A fixed custom-build hard plastic shell system.
2. An adjustable ready-made foampad system.
1. A fixed custom-build hard plastic shell system.
2. An adjustable ready-made foampad system.
Adjustable ready-made foampad system
The Orthos standing system
[2/2]
The custom-build shell guarantees a 100% fit for the upper body and upper legs. The hard plastic black shell is extremely rigid and provides the user with optimum comfort.
The ready-made foampads are a more flexible alternative to the fixed shell system. The extremely comfortable pads are easily adjusted and allow for the device to grow with its user. The adjustable foampad system is extremely rigid and provides the user with perfect support.
In addition a solid and easily adjustable working table can be added to both devices.
The ready-made foampads are a more flexible alternative to the fixed shell system. The extremely comfortable pads are easily adjusted and allow for the device to grow with its user. The adjustable foampad system is extremely rigid and provides the user with perfect support.
In addition a solid and easily adjustable working table can be added to both devices.
Custom-build plastic shell system
Technical specifications
| > Runner | > Stand & Roll | ||
| > Size |
Available in three different base sizes and suitable for users up to approximately 1.80 meters tall. - See also dimensions table. | > Size |
Available in three different base sizes and suitable for users up to approximately 1.80 meters tall. - See also dimensions table. |
| > Material |
High quality anodised Orthos aluminium. | > Material | High quality anodised Orthos aluminium. |
| > Wheelbase |
I-shaped tubular wheelbase frame. Supports users up to 85 kg/187 lbs. | > Wheelbase |
Double H-shaped tubular wheelbase frame. Supports users up to 85 kg/187 lbs. |
| > Standing System |
Users have the option to choose between two seating systems:
|
> Standing System |
Users have the option to choose between two seating systems:
|
| > Gas spring tilt |
Comes with adjustable gas spring tilt system so seating can be adjusted from fully horizontal to fully vertical. | > Gas spring tilt |
Comes with adjustable gas spring tilt system so seating can be adjusted from fully horizontal to fully vertical. |
| > Driver Wheels |
Comes with two large aluminium driver wheels with integrated driver rings located on both sides of the Runner. Both wheels are equipped with quick release axes that allow for easy storage and transportation. | > Driver Wheels |
No driver wheels. |
| > Castor Wheels |
Comes with two small castors located on the front and the back of the wheelbase. The castors on the Runner are not provided with individual brakes. | > Castor Wheels |
Comes with four large-size castors located on each corner of the wheelbase. Each individual castor is provided with a brake. |
| > Braking system |
Comes with one single-hand stop-lock system. Stop-lock system can be mounted anywhere on the wheelchair. | > Braking system |
Comes with four individual brakes each located on one of the four castors. |
| > Footrest |
Fully adjustable footrest. | > Footrest |
Fully adjustable footrest. |
| > Colours |
Frame available in two colours: deep blue and titan silver. Color of pad-seating is matched with the frame. | > Colours |
Frame available in two colours: deep blue and titan silver. Color of pad-seating is matched with the frame. |
| > Worktable |
Optional easily adjustable working table. Available in different sizes. | > Worktable |
Optional easily adjustable working table. Available in different sizes. |
| > Operating temperature |
Any comfortable operating temperature. | > Operating temperature |
Any comfortable operating temperature. |
| > Weight | 9 kg. to 15 kg. (20 lbs. to 35 lbs.) depending configuration. | > Weight | 9 kg. to 15 kg. (20 lbs. to 35 lbs.) depending configuration. |
| > Maximum load | Up to 85 kg. / 185 lbs. | > Maximum load | Up to 85 kg. / 185 lbs. |
Single-hand stop-lock system
Dimensions
| > Runner | > Stand & Roll | ||
| > Driver wheels |
Driver wheels available from 18x1” to 34x1”. | > Driver wheels |
No driver wheels. |
| > Castor wheels |
Castor size only in 10 cm. | > Castor wheels |
Castor size only in 8 cm. |
| > Total width |
Max. 45 cm. | > Total width |
Max. 45 cm. |
| > Total height |
Total length depends on configuration wheelchair. | > Total height | Total length depends on configuration wheelchair. |
| > Total length |
Total length depends on configuration wheelchair. | > Total length |
Total length depends on configuration wheelchair. |
STAND & ROLL
The Stand & Roll is a standing aid that moves easily in and around the house. Standing is a great alternative to sitting and as a standing orhtosis the Stand & Roll functions as an excellent supplement to your regular wheelchair.
Stand & Roll
The design
The Stand & Roll is designed with four braked castors is designed without large 'driver wheels': this means Stand & Roll users will be reliant on external guidance when moving around. Just like the Nomad and Stand & Roll this device adapts and ‘grows’ with its user. The tubular frame and adjustable components enable our specialists to modify your Runner at any time and help them to combine and interchange parts from different Orthos products.
Runner vs. Stand & Roll
Just like the Stand & Roll the Runner is also a standing orthosis. Both orthoses show many similarities but differ in use: With its two comfortable driver wheels the runner lets its user have full control over all movements. The Stand & Roll on the other hand is designed with four braked castors: the users of this model will be reliant on external guidance when moving around.
Left: Runner. Right: Stand & Roll.
Move and improve.
Standing up straight appropriately contributes to the correct development of the human body. The Orthos Runner and Stand & Roll therefore provide a great alternatives to regular wheelchairs. Standing improves blood circulation; it gives the human skeleton a more even bone loading and therefore stimulates growth; standing supports better organ functioning; it counteracts bed sores. In addition, standing provides an upright view of the world helping users to interact more naturally with their surroundings.
Single-hand stop-lock system
The Orthos standing system
[1/2]
For both the Runner and Stand & Roll there are two different standing systems to choose from:
1. A fixed custom-build hard plastic shell system.
2. An adjustable ready-made foampad system.
Adjustable ready-made foampad system
The Orthos standing system
[2/2]
The custom-build shell guarantees a 100% fit for the upper body and upper legs. The hard plastic black shell is extremely rigid and provides the user with optimum comfort.
The ready-made foampads are a more flexible alternative to the fixed shell system. The extremely comfortable pads are easily adjusted and allow for the device to grow with its user. The adjustable foampad system is extremely rigid and provides the user with perfect support.
In addition a solid and easily adjustable working table can be added to both devices.
Custom-build plastic shell system
Single-hand stop-lock system
Technical specifications
[Runner]
> Size
Available in three different base sizes and suitable for users up to approximately 1.80 meters tall. - See also dimensions table.
> Material
High quality anodised Orthos aluminium.
> Wheelbase
I-shaped tubular wheelbase frame. Supports users up to 85 kg/187 lbs.
> Standing System
Users have the option to choose between two seating systems: A custom build shell that fully supports the body and upper legs. An adjustable ready-made foam pad system.
> Gas spring tilt
Comes with adjustable gas spring tilt system so seating can be adjusted from fully horizontal to fully vertical.
> Driver Wheels
Comes with two large aluminium driver wheels with integrated driver rings located on both sides of the Runner. Both wheels are equipped with quick release axes that allow for easy storage and transportation.
> Castor Wheels
Comes with two small castors located on the front and the back of the wheelbase. The castors on the Runner are not provided with individual brakes.
> Braking system
Comes with one single-hand stop-lock system. Stop-lock system can be mounted anywhere on the wheelchair.
> Footrest
Fully adjustable footrest.
> Colours
Frame available in two colours: deep blue and titan silver. Color of pad-seating is matched with the frame.
> Worktable
Optional easily adjustable working table. Available in different sizes.
> Operating temperature
Any comfortable operating temperature.
> Weight
9 kg. to 15 kg. (20 lbs. to 35 lbs.) depending configuration.
> Maximum load
Up to 85 kg. / 185 lbs.
Technical specifications
[Stand & Roll]
> Size
Available in three different base sizes and suitable for users up to approximately 1.80 meters tall. - See also dimensions table.
> Material
High quality anodised Orthos aluminium.
> Wheelbase
Double H-shaped tubular wheelbase frame. Supports users up to 85 kg/187 lbs.
> Standing System
Users have the option to choose between two seating systems: A custom build shell that fully supports the body and upper legs. An adjustable ready-made foam pad system.
> Gas spring tilt
Comes with adjustable gas spring tilt system so seating can be adjusted from fully horizontal to fully vertical.
> Driver Wheels
No driver wheels.
> Castor Wheels
Comes with four large-size castors located on each corner of the wheelbase. Each individual castor is provided with a brake.
> Braking system
Comes with four individual brakes each located on one of the four castors.
> Footrest
Fully adjustable footrest.
> Colours
Frame available in two colours: deep blue and titan silver. Color of pad-seating is matched with the frame.
> Worktable
Optional easily adjustable working table. Available in different sizes.
> Operating temperature
Any comfortable operating temperature.
> Weight
9 kg. to 15 kg. (20 lbs. to 35 lbs.) depending configuration.
> Maximum load
Up to 85 kg. / 185 lbs.
Single-hand stop-lock system
Dimensions
[Runner]
> Driver wheels
Driver wheels available from 18x1” to 34x1”.
> Castor wheels
Castor size only in 10 cm.
> Total width
Max. 45 cm.
> Total height
Total length depends on configuration wheelchair.
> Total length
Total length depends on configuration wheelchair.
Dimensions
[Stand & Roll]
> Driver wheels
No driver wheels.
> Castor wheels
Castor size only in 8 cm.
> Total width
Max. 45 cm.
> Total height
Total length depends on configuration wheelchair.
> Total length
Total length depends on configuration wheelchair.
